Available Finishes

Enhance your Bottom Closure with premium finishes that add tactile appeal and visual impact.

Gloss Lamination

Gloss lamination applies a clear, reflective polypropylene film over the entire printed surface. The film intensifies CMYK color values, making photographs and gradients look sharper and more saturated. Retail toy packaging, snack food boxes, and consumer electronics cartons use gloss lam because the shiny surface catches store lighting and draws attention at a distance. The trade-off is that gloss shows fingerprints and scratches more than matte. Film thickness runs 12-25 microns. The protective layer resists moisture, scuffing, and ink rubbing during transit. Gloss lamination runs through thermal or wet laminating equipment after printing and before die-cutting.

+10% price

Matte Lamination

Matte lamination bonds a thin non-reflective polypropylene film to the printed surface of the carton. The film eliminates glare, slightly mutes color saturation, and gives the box a smooth, flat appearance that reads as understated and premium. Matte lam hides minor printing imperfections and fingerprints better than gloss, which is why cosmetics and luxury food brands default to it. The lamination layer also protects against scuffing, moisture, and ink transfer during shipping and shelf handling. Film thickness runs 12-25 microns. Matte lamination pairs well with spot UV, where a glossy accent on a matte background creates high-contrast visual interest on logos and typography.

+10% price

Spot UV

Spot UV applies a clear ultraviolet-cured coating to specific areas of the box rather than the entire surface. The result is a glossy, raised accent on logos, typography, or decorative patterns that contrasts against the surrounding matte or uncoated surface. The UV coating cures instantly under ultraviolet light during production, which creates a hard, durable finish that resists scratching. Raised spot UV adds a thicker coating layer (10-20 microns above the surface) that you can feel with your fingertip. This finish requires a separate printing plate aligned precisely to the artwork, so setup costs are higher than full-surface coatings.

+12% price

Embossing

Embossing uses a matched set of metal dies to push the carton material upward, creating a raised three-dimensional pattern or logo on the surface. The male die presses from behind while the female die shapes the front face. The depth of the emboss depends on material thickness and fiber direction, typically ranging from 0.5mm to 2mm of lift. Deeper embossing works better on thicker board (400gsm+) because the fibers have more room to stretch without cracking. Embossing works without ink or foil for a subtle tone-on-tone texture, or combined with foil stamping for a raised metallic effect. Heat is applied during the process (120-160°C) to help the paperboard fibers hold their new shape permanently.

+15% price

Debossing

Debossing is the reverse of embossing: it presses a design into the carton surface to create a recessed, sunken impression. The male die pushes down from the front while the female die supports from behind. The result is a clean indentation that catches shadows and creates visual depth without adding any material to the surface. Debossing works well for brand logos, decorative borders, and subtle patterns where the tactile quality matters more than visibility from a distance. Like embossing, depth ranges from 0.5mm to 2mm depending on board thickness. Debossing pairs well with matte and soft-touch laminations where the recessed areas create a contrast texture against the smooth surrounding surface.

+15% price

Die Cutting

Die cutting uses a custom-shaped steel blade mounted on a wooden board to cut paperboard into specific shapes during production. Every box shape starts as a flat sheet that passes through a die-cutting press where the steel rule die stamps out the carton blank, score lines, and perforation cuts in a single press cycle. The die is custom-made for each box design, which involves a one-time tooling cost. Die-cut accuracy runs within 0.5mm tolerance on modern flatbed and rotary die cutters. Beyond standard box shapes, die cutting creates custom windows, thumb-cut openings, hang-tab holes, and decorative shapes. Complex dies with many cut lines cost more due to the additional steel rule bending.

+10% price

Frequently Asked Questions

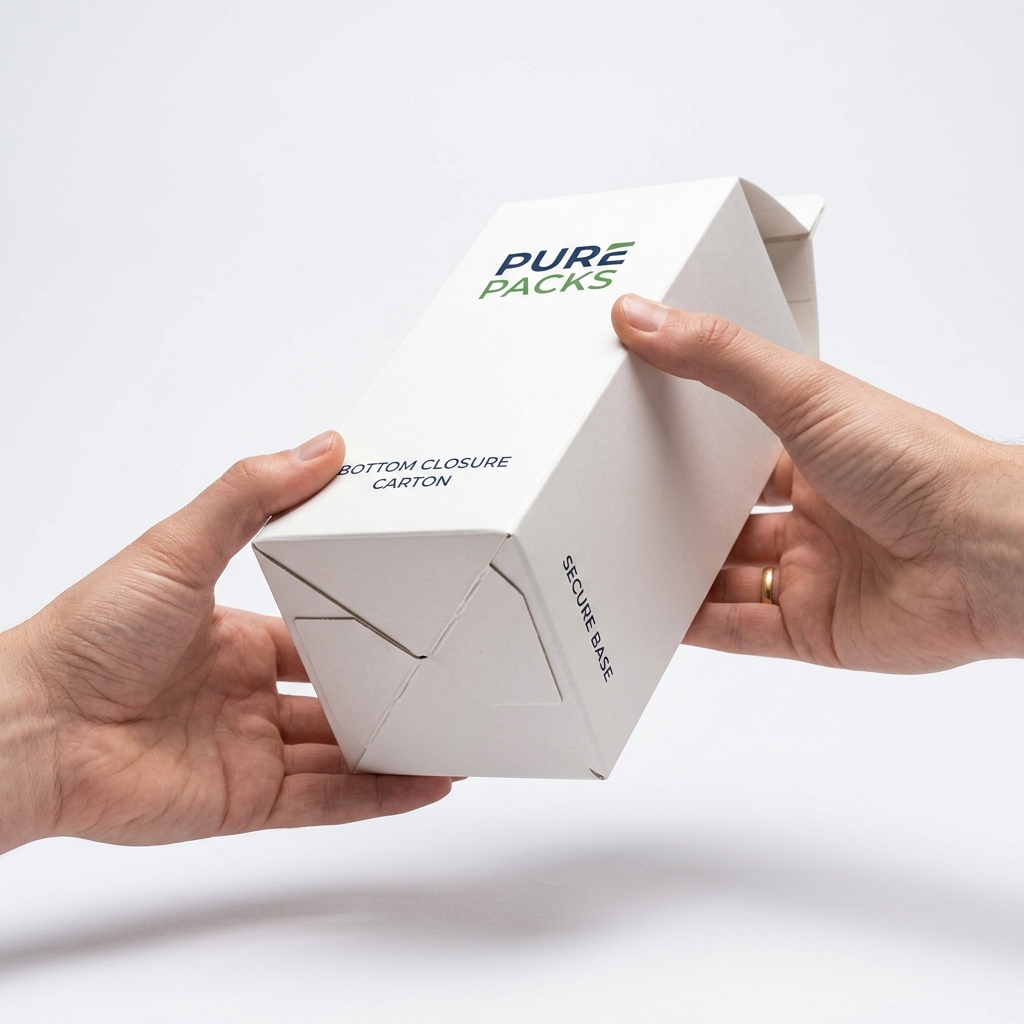

What is a Bottom Closure box?

A bottom closure box has a closure mechanism on the bottom panel instead of the top. The product loads from the top into an open carton, then the bottom flaps fold and lock to seal the package from below. This is the opposite of most retail cartons where the bottom is assembled first and the product loads through the top. Bottom closure boxes are used when the product needs to be positioned precisely inside the box before sealing, like a fragile ceramic vase placed upside-down into the carton, or a multi-piece gift set arranged in a tray insert before the outer carton wraps around it and closes underneath. The bottom closure can use tuck flaps, snap-lock tabs, or auto-lock mechanisms depending on speed and security requirements. Materials include 300-450gsm SBS and white cardboard. Cubit produces custom bottom closure boxes from 100 units with free dieline assistance.

What materials are available for Bottom Closure packaging?

Bottom Closure packaging is available in SBS Paperboard, White Cardboard, Corrugated Cardboard. Each material offers different properties for strength, sustainability, and print quality.

What is the minimum order quantity for custom Bottom Closure boxes?

Custom Bottom Closure boxes start at 100 units with full-color printing, custom sizing, and your choice of materials and finishes. Volume discounts apply for orders of 500+ units.

How long does it take to produce custom Bottom Closure packaging?

Standard production for custom Bottom Closure boxes is 8-12 business days after artwork approval. Rush production is available in 5-7 business days for an additional fee. Free shipping on all orders within the continental US.

What products are best suited for Bottom Closure packaging?

Bottom Closure packaging is ideal for Pharmaceutical Packaging, High-Value Electronics, Security Packaging, Subscription Boxes, Wine & Spirits. The structural design and material options make it versatile enough for products ranging from lightweight cosmetics to heavier food items.
