Tuck Snap Bottom
All Box Styles

Tuck Snap Bottom

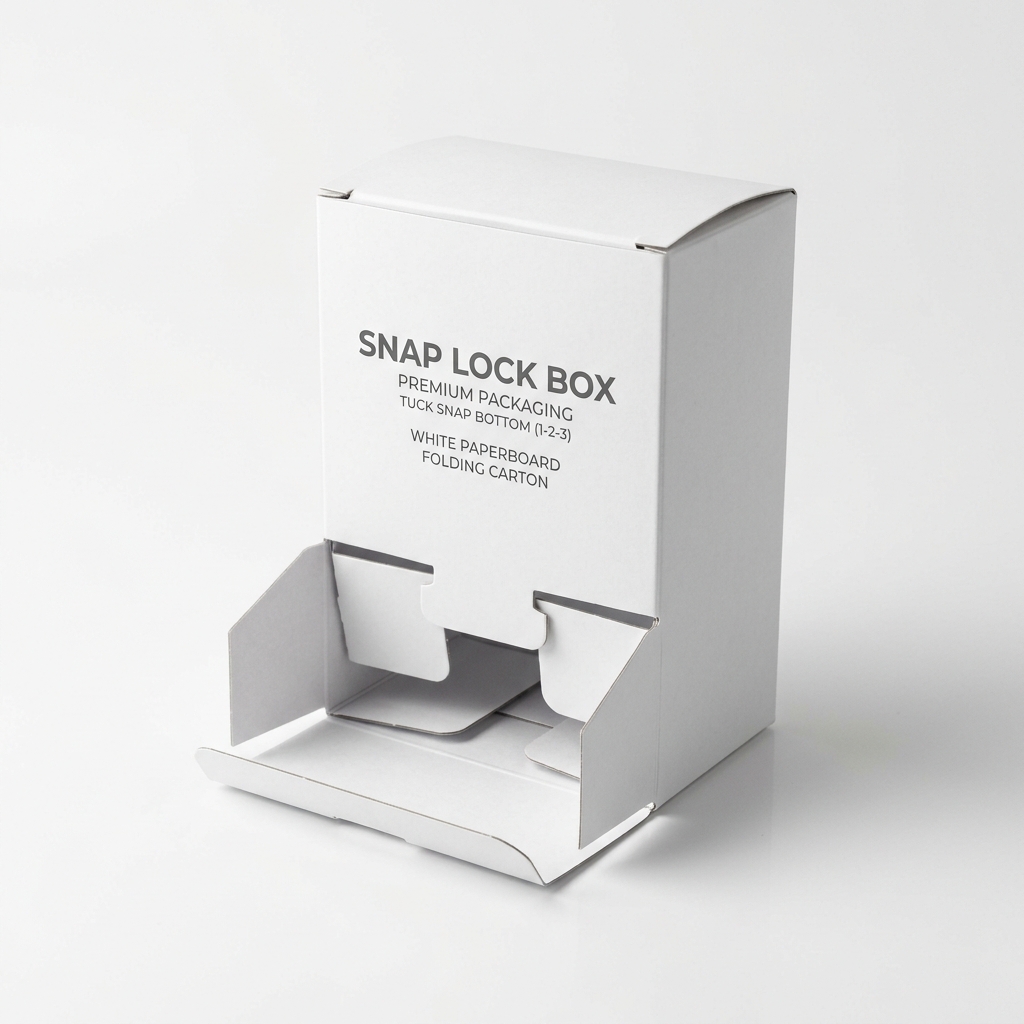

A tuck snap bottom box (also called a snap-lock or 1-2-3 bottom) has four base flaps that fold and interlock in sequence to form a rigid bottom without glue or tape. The interlocking mechanism holds significantly more weight than a standard tuck bottom, making this the go-to format for glass jars, candles, cosmetics, and small electronics. Assembly is manual: a trained packer folds about 5-8 boxes per minute, compared to 20+ per minute with a pre-glued auto bottom. That trade-off works for low-to-mid volume runs where the lower per-unit cost offsets the slower packing speed. The top uses a standard tuck closure (straight or reverse). No gluing step during production means faster manufacturing lead times and lower tooling costs. Produced in SBS paperboard, kraft, or corrugated E-flute at Cubit, starting at 100 units.

4 Materials Available6 Finishes Available
Cubit

Everything you need for packaging, in one place.

Products

  • Custom Boxes
  • Mailer Boxes
  • Corrugated Boxes
  • Rigid Boxes
  • Folding Cartons
  • Stand-Up Pouches
  • Custom Stickers
  • Custom Labels
  • Mylar Bags
  • All Products
  • All Categories

Platform

  • Cubit Store
  • Cubit Design
  • Cubit Flow
  • Cubit One
  • Cubit Green
  • Cubit Secure
  • AI Consultant

Industries

  • E-commerce & DTC
  • Food & Beverage
  • Cosmetics & Beauty
  • Cannabis & CBD
  • Pharmaceuticals
  • Coffee & Tea
  • Retail & CPG
  • Subscription Boxes
  • All Industries

Service Areas

  • Fremont, CA (HQ)
  • San Francisco
  • San Jose
  • Los Angeles
  • Oakland
  • Bay Area
  • California
  • All Locations

Company

  • About Us
  • Blog
  • Case Studies
  • Contact
  • Partners

Support

  • Help Center
  • Request a Quote
  • Bulk Packaging
  • Corporate Programs
  • Flexible Packaging
  • Wholesale Mylar Bags
  • Wholesale Poly Mailers
  • Wholesale Folding Cartons
  • ⚡ Rush Orders
  • Shipping Info
  • Returns
  • Contact Us
  • Barcode Generator
  • Pouch Dieline Generator
  • ECT Guide
  • Box Size Finder
  • Carbon Calculator
  • AI Dieline Generator
  • Packaging Mockup Generator
Stay updated with packaging trendsNo spam, unsubscribe anytime.
© 2026 Cubit. All rights reserved.
Privacy Policy•Terms of Service•Cookie Policy

Best For:

Mid-Volume RetailGift PackagingBakery & ConfectioneryCandle PackagingToy Packaging
Free Shipping
8-12 Day Production
MOQ 100 Units

Technical Specifications

assembly
Manual snap-lock — no adhesive
max size
12 x 10 x 8 inches
min size
2 x 2 x 2 inches
closure type
Tuck top with snap-lock interlocking base
ideal weight range
Up to 10 lbs
material compatibility
SBS Paperboard, White Cardboard, Kraft Paper, Chipboard

Available Materials

Choose the right substrate for your Tuck Snap Bottom packaging based on product weight, sustainability goals, and print requirements.

SBS Paperboard

Recyclable

White Cardboard

Recyclable

Kraft Paper

Eco Recyclable

Chipboard

Eco Recyclable

Available Finishes

Enhance your Tuck Snap Bottom with premium finishes that add tactile appeal and visual impact.

Gloss Lamination

Gloss lamination applies a clear, reflective polypropylene film over the entire printed surface. The film intensifies CMYK color values, making photographs and gradients look sharper and more saturated. Retail toy packaging, snack food boxes, and consumer electronics cartons use gloss lam because the shiny surface catches store lighting and draws attention at a distance. The trade-off is that gloss shows fingerprints and scratches more than matte. Film thickness runs 12-25 microns. The protective layer resists moisture, scuffing, and ink rubbing during transit. Gloss lamination runs through thermal or wet laminating equipment after printing and before die-cutting.

+10% price

Matte Lamination

Matte lamination bonds a thin non-reflective polypropylene film to the printed surface of the carton. The film eliminates glare, slightly mutes color saturation, and gives the box a smooth, flat appearance that reads as understated and premium. Matte lam hides minor printing imperfections and fingerprints better than gloss, which is why cosmetics and luxury food brands default to it. The lamination layer also protects against scuffing, moisture, and ink transfer during shipping and shelf handling. Film thickness runs 12-25 microns. Matte lamination pairs well with spot UV, where a glossy accent on a matte background creates high-contrast visual interest on logos and typography.

+10% price

Spot UV

Spot UV applies a clear ultraviolet-cured coating to specific areas of the box rather than the entire surface. The result is a glossy, raised accent on logos, typography, or decorative patterns that contrasts against the surrounding matte or uncoated surface. The UV coating cures instantly under ultraviolet light during production, which creates a hard, durable finish that resists scratching. Raised spot UV adds a thicker coating layer (10-20 microns above the surface) that you can feel with your fingertip. This finish requires a separate printing plate aligned precisely to the artwork, so setup costs are higher than full-surface coatings.

+12% price

Embossing

Embossing uses a matched set of metal dies to push the carton material upward, creating a raised three-dimensional pattern or logo on the surface. The male die presses from behind while the female die shapes the front face. The depth of the emboss depends on material thickness and fiber direction, typically ranging from 0.5mm to 2mm of lift. Deeper embossing works better on thicker board (400gsm+) because the fibers have more room to stretch without cracking. Embossing works without ink or foil for a subtle tone-on-tone texture, or combined with foil stamping for a raised metallic effect. Heat is applied during the process (120-160°C) to help the paperboard fibers hold their new shape permanently.

+15% price

Debossing

Debossing is the reverse of embossing: it presses a design into the carton surface to create a recessed, sunken impression. The male die pushes down from the front while the female die supports from behind. The result is a clean indentation that catches shadows and creates visual depth without adding any material to the surface. Debossing works well for brand logos, decorative borders, and subtle patterns where the tactile quality matters more than visibility from a distance. Like embossing, depth ranges from 0.5mm to 2mm depending on board thickness. Debossing pairs well with matte and soft-touch laminations where the recessed areas create a contrast texture against the smooth surrounding surface.

+15% price

Die Cutting

Die cutting uses a custom-shaped steel blade mounted on a wooden board to cut paperboard into specific shapes during production. Every box shape starts as a flat sheet that passes through a die-cutting press where the steel rule die stamps out the carton blank, score lines, and perforation cuts in a single press cycle. The die is custom-made for each box design, which involves a one-time tooling cost. Die-cut accuracy runs within 0.5mm tolerance on modern flatbed and rotary die cutters. Beyond standard box shapes, die cutting creates custom windows, thumb-cut openings, hang-tab holes, and decorative shapes. Complex dies with many cut lines cost more due to the additional steel rule bending.

+10% price

Expert Packaging Guide

Tuck Snap Bottom packaging from Cubit is fully customizable with 4 material options including SBS Paperboard, White Cardboard, Kraft Paper and 1 more and 6 finish options. Every order includes free design assistance from our packaging engineers, who will help you select the optimal material weight, finish combination, and structural configuration for your specific product.

Our clients use Tuck Snap Bottom packaging across industries including Mid-Volume Retail, Gift Packaging, Bakery & Confectionery, Candle Packaging, and 1 more applications. With a minimum order quantity of just 100 units and standard production turnaround of 8-12 business days, Cubit makes custom Tuck Snap Bottom packaging accessible to businesses of every size—from startup brands to enterprise operations processing thousands of units daily.

All Tuck Snap Bottom packaging is produced using food-safe inks and coatings, and every order undergoes a three-stage quality inspection before shipping. Free ground shipping is included on all orders within the continental United States.

Frequently Asked Questions

What is a Tuck Snap Bottom box?

A tuck snap bottom box (also called a snap-lock or 1-2-3 bottom) has four base flaps that fold and interlock in sequence to form a rigid bottom without glue or tape. The interlocking mechanism holds significantly more weight than a standard tuck bottom, making this the go-to format for glass jars, candles, cosmetics, and small electronics. Assembly is manual: a trained packer folds about 5-8 boxes per minute, compared to 20+ per minute with a pre-glued auto bottom. That trade-off works for low-to-mid volume runs where the lower per-unit cost offsets the slower packing speed. The top uses a standard tuck closure (straight or reverse). No gluing step during production means faster manufacturing lead times and lower tooling costs. Produced in SBS paperboard, kraft, or corrugated E-flute at Cubit, starting at 100 units.

What materials are available for Tuck Snap Bottom packaging?

Tuck Snap Bottom packaging is available in SBS Paperboard, White Cardboard, Kraft Paper, Chipboard. Each material offers different properties for strength, sustainability, and print quality.

What is the minimum order quantity for custom Tuck Snap Bottom boxes?

Custom Tuck Snap Bottom boxes start at 100 units with full-color printing, custom sizing, and your choice of materials and finishes. Volume discounts apply for orders of 500+ units.

How long does it take to produce custom Tuck Snap Bottom packaging?

Standard production for custom Tuck Snap Bottom boxes is 8-12 business days after artwork approval. Rush production is available in 5-7 business days for an additional fee. Free shipping on all orders within the continental US.

What products are best suited for Tuck Snap Bottom packaging?

Tuck Snap Bottom packaging is ideal for Mid-Volume Retail, Gift Packaging, Bakery & Confectionery, Candle Packaging, Toy Packaging. The structural design and material options make it versatile enough for products ranging from lightweight cosmetics to heavier food items.

Other Box Styles

Seal EndMailer BoxMylar BagsFive Panel HangerSleeve BoxesHanger Boxes

Ready to Order Tuck Snap Bottom?

Get a custom quote with your specifications. Our packaging engineers respond within 15 minutes during working hours with material recommendations, pricing, and structural guidance.
