Available Finishes

Enhance your Auto Bottom with premium finishes that add tactile appeal and visual impact.

Gloss Lamination

Gloss lamination applies a clear, reflective polypropylene film over the entire printed surface. The film intensifies CMYK color values, making photographs and gradients look sharper and more saturated. Retail toy packaging, snack food boxes, and consumer electronics cartons use gloss lam because the shiny surface catches store lighting and draws attention at a distance. The trade-off is that gloss shows fingerprints and scratches more than matte. Film thickness runs 12-25 microns. The protective layer resists moisture, scuffing, and ink rubbing during transit. Gloss lamination runs through thermal or wet laminating equipment after printing and before die-cutting.

+10% price

Matte Lamination

Matte lamination bonds a thin non-reflective polypropylene film to the printed surface of the carton. The film eliminates glare, slightly mutes color saturation, and gives the box a smooth, flat appearance that reads as understated and premium. Matte lam hides minor printing imperfections and fingerprints better than gloss, which is why cosmetics and luxury food brands default to it. The lamination layer also protects against scuffing, moisture, and ink transfer during shipping and shelf handling. Film thickness runs 12-25 microns. Matte lamination pairs well with spot UV, where a glossy accent on a matte background creates high-contrast visual interest on logos and typography.

+10% price

Spot UV

Spot UV applies a clear ultraviolet-cured coating to specific areas of the box rather than the entire surface. The result is a glossy, raised accent on logos, typography, or decorative patterns that contrasts against the surrounding matte or uncoated surface. The UV coating cures instantly under ultraviolet light during production, which creates a hard, durable finish that resists scratching. Raised spot UV adds a thicker coating layer (10-20 microns above the surface) that you can feel with your fingertip. This finish requires a separate printing plate aligned precisely to the artwork, so setup costs are higher than full-surface coatings.

+12% price

Embossing

Embossing uses a matched set of metal dies to push the carton material upward, creating a raised three-dimensional pattern or logo on the surface. The male die presses from behind while the female die shapes the front face. The depth of the emboss depends on material thickness and fiber direction, typically ranging from 0.5mm to 2mm of lift. Deeper embossing works better on thicker board (400gsm+) because the fibers have more room to stretch without cracking. Embossing works without ink or foil for a subtle tone-on-tone texture, or combined with foil stamping for a raised metallic effect. Heat is applied during the process (120-160°C) to help the paperboard fibers hold their new shape permanently.

+15% price

Debossing

Debossing is the reverse of embossing: it presses a design into the carton surface to create a recessed, sunken impression. The male die pushes down from the front while the female die supports from behind. The result is a clean indentation that catches shadows and creates visual depth without adding any material to the surface. Debossing works well for brand logos, decorative borders, and subtle patterns where the tactile quality matters more than visibility from a distance. Like embossing, depth ranges from 0.5mm to 2mm depending on board thickness. Debossing pairs well with matte and soft-touch laminations where the recessed areas create a contrast texture against the smooth surrounding surface.

+15% price

Die Cutting

Die cutting uses a custom-shaped steel blade mounted on a wooden board to cut paperboard into specific shapes during production. Every box shape starts as a flat sheet that passes through a die-cutting press where the steel rule die stamps out the carton blank, score lines, and perforation cuts in a single press cycle. The die is custom-made for each box design, which involves a one-time tooling cost. Die-cut accuracy runs within 0.5mm tolerance on modern flatbed and rotary die cutters. Beyond standard box shapes, die cutting creates custom windows, thumb-cut openings, hang-tab holes, and decorative shapes. Complex dies with many cut lines cost more due to the additional steel rule bending.

+10% price

Foil Stamping

Foil stamping transfers a thin layer of metallic or pigmented foil onto the carton surface using a heated die pressed against the material. The die melts an adhesive layer on the foil, bonding it permanently to the paperboard. Standard colors include gold, silver, copper, and holographic, though custom Pantone-matched foils are available for brand-specific colors. Foil stamping catches light at angles that CMYK printing cannot replicate, which is why luxury brands use it for logos, borders, and key typography. Each foil color requires a separate die and press pass, so multi-color foil increases production cost. Temperature runs 120-175 degrees Celsius depending on material.

+20% price

Soft Touch Lamination

Soft touch lamination applies a specialty matte film that creates a velvety, suede-like texture when you run your fingers over the surface. The tactile effect makes people pick up the box and hold it longer, which is why premium cosmetics, luxury spirits, and high-end electronics brands pay the 30-50% cost premium over standard matte lam. The finish resists fingerprints better than either gloss or standard matte. Soft touch film typically runs 18-30 microns and bonds through thermal lamination. The velvety surface pairs particularly well with foil stamping and raised spot UV, where the metallic or glossy accents pop against the matte tactile background.

+15% price

Full UV Coating

Full UV coating applies an ultraviolet-cured clear coat across the entire printed surface of the carton. The coating cures in milliseconds under UV lamps, creating a hard, glossy protective layer that resists scuffing, fingerprints, and moisture. Full UV produces a higher sheen than gloss lamination and does not require a separate film layer, which makes it faster to apply on high-speed production lines. The coating thickness runs 3-8 microns. Full UV is the standard protective finish for retail cartons that need to survive aggressive handling in store environments. It works on SBS paperboard, white cardboard, and coated recycled board.

+8% price

Frequently Asked Questions

What is a Auto Bottom box?

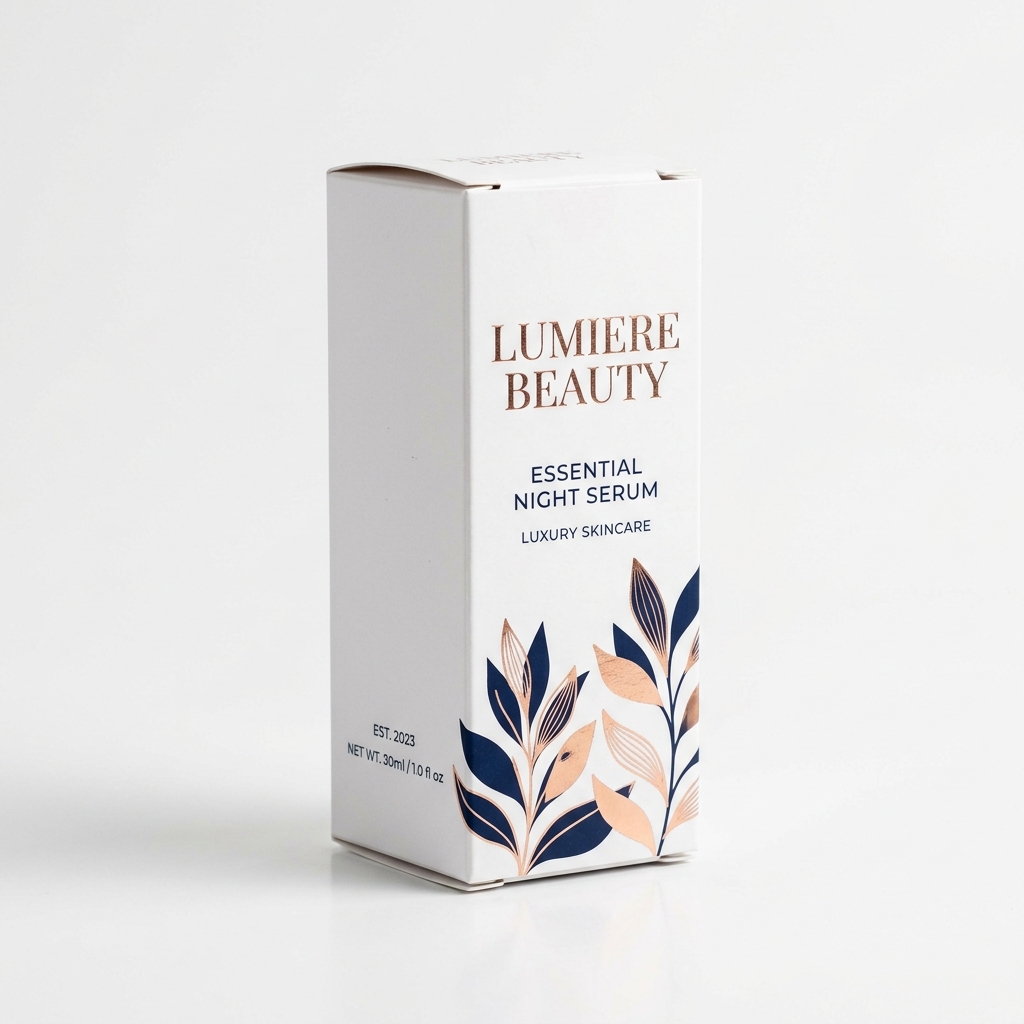

An auto bottom box has a pre-glued base that snaps into a rigid, locked position when you push the carton open from its flat-packed state. The factory glues the base flaps during production, so your packing team skips the bottom-folding step entirely. At 20+ boxes per minute compared to 5-8 for manual snap-lock, the speed difference adds up fast on lines processing hundreds of units per hour. The locked base also distributes weight more evenly than tuck flaps, which means fewer bottom blowouts with heavy products like glass bottles, ceramic candles, and stacked items. Auto bottom boxes work with automated filling equipment and cartoning machines. Standard material is 300-450gsm SBS or white cardboard. The per-unit cost is higher than snap-lock because of the pre-gluing step, but the labor savings usually offset that above 500 units per run. Custom auto bottom boxes from Cubit start at 100 units.

What materials are available for Auto Bottom packaging?

Auto Bottom packaging is available in SBS Paperboard, White Cardboard, Kraft Paper, Corrugated Cardboard. Each material offers different properties for strength, sustainability, and print quality.

What is the minimum order quantity for custom Auto Bottom boxes?

Custom Auto Bottom boxes start at 100 units with full-color printing, custom sizing, and your choice of materials and finishes. Volume discounts apply for orders of 500+ units.

How long does it take to produce custom Auto Bottom packaging?

Standard production for custom Auto Bottom boxes is 8-12 business days after artwork approval. Rush production is available in 5-7 business days for an additional fee. Free shipping on all orders within the continental US.

What products are best suited for Auto Bottom packaging?

Auto Bottom packaging is ideal for E-Commerce Fulfillment, Cosmetics & Beauty, Supplements & Nutraceuticals, Confectionery, Electronics Accessories, Pharmaceutical. The structural design and material options make it versatile enough for products ranging from lightweight cosmetics to heavier food items.
