How to Design Custom Drawer Boxes That Sell the Unboxing Experience (2026 Guide)
Cubit Team
June 10, 2026
How to Design Custom Drawer Boxes That Sell the Unboxing Experience
Custom drawer boxes don't just hold products. They choreograph the entire moment a customer first touches your brand. The sliding mechanism forces a slow, deliberate reveal — a 3-5 second ceremony that turns a transaction into an experience. That mechanic is precisely why brands selling products above $50 retail choose drawer boxes over every other rigid box format.
This guide covers everything you need to specify when ordering custom drawer boxes: material construction, sizing decisions, printing and finishing techniques, interior presentation options, and real unit cost data.
How Drawer Box Construction Works
A drawer box is a two-piece rigid packaging format consisting of an outer sleeve and an inner sliding tray. Unlike folding cartons that collapse flat, drawer boxes maintain their rigid shape permanently because both components are built on thick greyboard cores.
Outer Sleeve: Four greyboard panels (top, bottom, two sides) laminated together and wrapped in printed or specialty paper. The sleeve remains stationary during opening. The interior of the sleeve has a smooth lining paper that the tray slides against.
Inner Tray: A separate four-sided open-top tray, also built on greyboard, that slides in and out of the sleeve. The tray holds the product and any insert materials (foam, velvet, satin). A ribbon pull or thumb notch attached to the tray base allows smooth, one-handed opening.
The critical engineering specification is the sleeve-to-tray gap: the space between the outer sleeve's inner surface and the tray's outer surface. At Cubit, we manufacture to a 0.5mm tolerance — tight enough for a satisfying friction fit that prevents the tray from falling out when the box is tilted, but loose enough that the tray slides smoothly without binding.

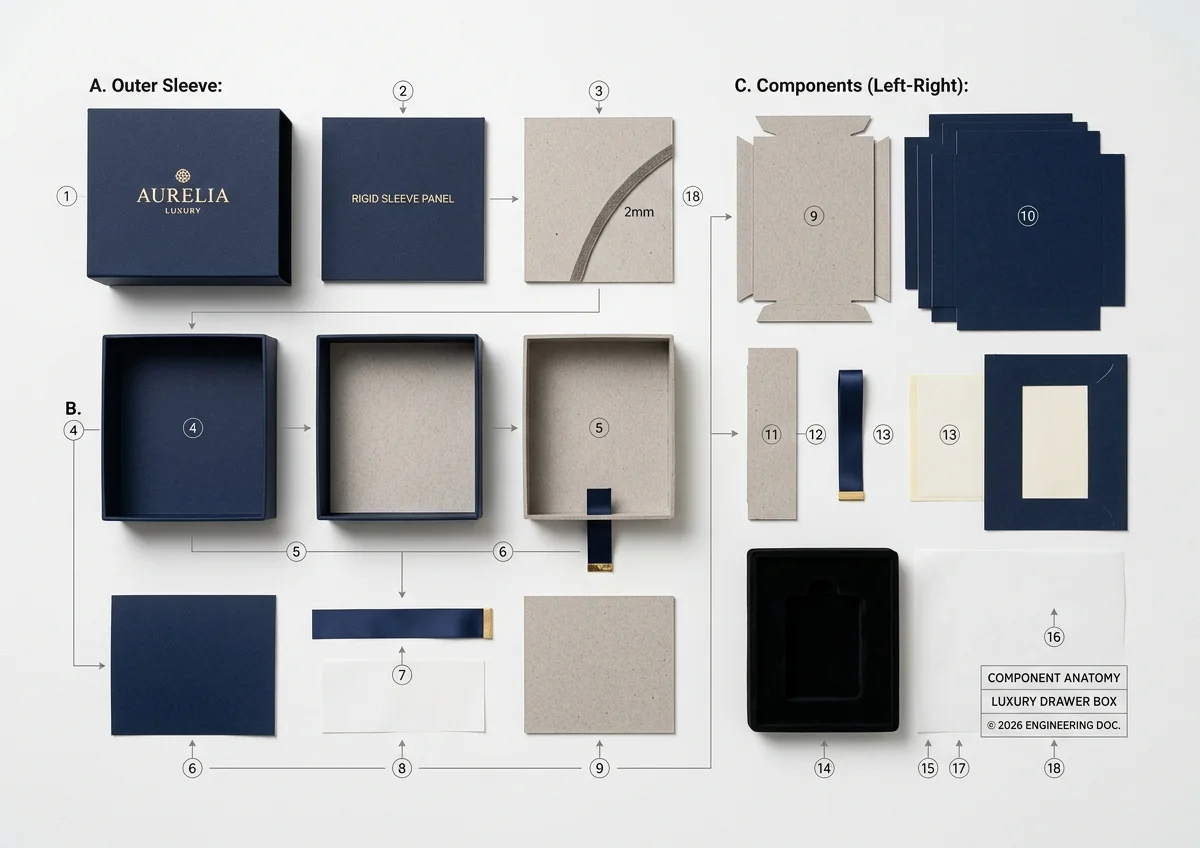

Exploded view of drawer box construction showing all components
Choosing the Right Greyboard Thickness
Greyboard thickness directly determines structural rigidity, perceived luxury, and cost. Here's how the two standard options compare:
2mm Greyboard (Standard)
The industry standard for most drawer boxes. At approximately 1200 GSM equivalent, 2mm board provides excellent rigidity while keeping weight and material cost manageable. Suitable for products up to 2 lbs (900g).
Best for: Jewelry, cosmetics, small electronics, perfume, candles, gift sets. Unit cost impact: Base pricing — no surcharge.
2.5mm Greyboard (Heavy-Duty)
A 25% increase in board thickness creates a noticeably more substantial, heavier box. The extra 0.5mm adds significant crush resistance and shelf weight. Required for products above 2 lbs or when the box will be reused for long-term storage.
Best for: Watches, premium spirits, heavy electronics, presentation boxes expected to last years. Unit cost impact: +$0.40-$0.65 per unit over 2mm standard.
Wrapping Paper Options
The wrap paper determines how your drawer box looks, feels, and prints. Every option starts with the same greyboard core — the difference is purely in the exterior experience:
| Paper Type | Texture | Print Capability | Best For |
|---|---|---|---|
| Coated Art Paper | Smooth, professional | Full CMYK, spot colors, foil | Photographic artwork, vibrant gradients |
| Textured Linen | Cross-hatched fabric | Foil stamping, blind embossing | Jewelry, bridal, heritage brands |
| Metallic/Pearl | Shimmering, iridescent | Foil, spot UV, minimal printing | Cosmetics, fragrances, luxury gifts |
| Kraft Paper | Natural fiber, unbleached | 1-2 color screen print | Eco brands, artisan food, organic products |
| Leather Grain | Pebbled texture | Foil stamping, debossing | Spirits, watches, ultra-premium products |
| Recycled Paper | Speckled, raw | Soy ink, minimal printing | Sustainability-focused brands |
Size Guide: Matching Dimensions to Your Product

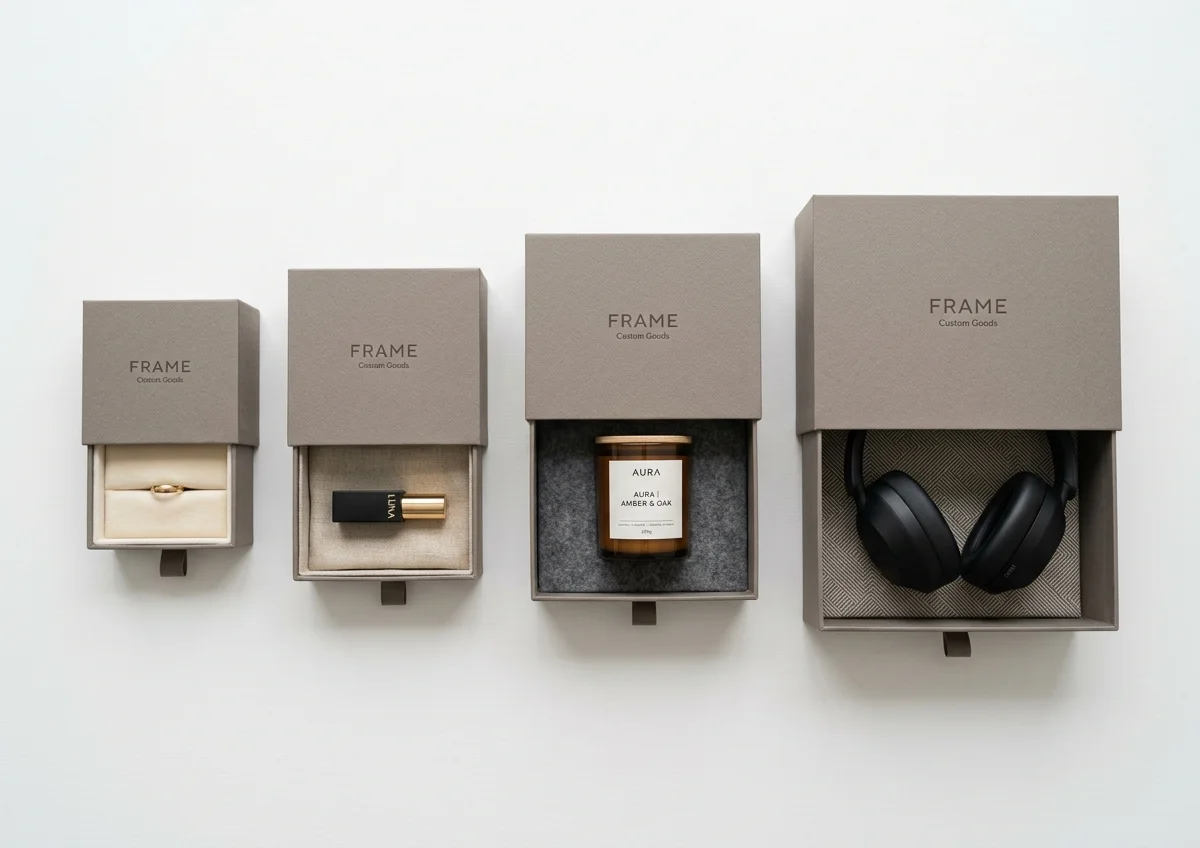

Four drawer box sizes from mini to large with products inside
Cubit offers four standard drawer box sizes, plus fully custom dimensions for any product:
Mini / Jewelry (4 × 3 × 1.5 inches)
Designed for single-item jewelry presentation: engagement rings, earring pairs, pendants, lapel pins, cufflinks. The compact format creates an intimate unboxing moment. Interior typically features a velvet-flocked foam insert with a single die-cut cavity.
Unit cost: $2.50-$3.50 at 200+ units.
Small / Cosmetic (6 × 4 × 2 inches)
Fits most cosmetics, fragrances, and small electronics. Popular with DTC beauty brands for serum sets, lipstick duos, and sample kits. Interior supports satin ribbon cushions or multi-cavity foam.
Unit cost: $3.00-$4.50 at 200+ units.
Medium / Gift (8 × 6 × 3 inches)
The versatile mid-range format for gift sets, candles, subscription kits, and multi-item corporate gifts. Large enough for a curated arrangement, compact enough to feel personal.
Unit cost: $4.00-$6.00 at 200+ units.
Large / Presentation (12 × 9 × 4 inches)
Presentation-grade format for headphones, premium spirits, multi-piece gift collections, and brand launch kits. Often used for influencer unboxing experiences and media kits.
Unit cost: $6.50-$9.50 at 200+ units.
Custom sizes are available starting at 100 units. Provide your product dimensions and we calculate the optimal interior cavity with 3-5mm clearance per side.
Printing Techniques for Drawer Boxes
Drawer boxes support the widest range of printing methods of any packaging format because the smooth paper wrap accepts every technique:
CMYK Full-Color Offset — Photographic quality, continuous tone reproduction. Ideal for complex artwork, brand photography, and gradient designs. Minimum 500 units for offset.
Pantone Spot Colors — Precise brand color matching beyond CMYK gamut. Essential for luxury brands with specific Pantone guidelines. 1-4 spot colors per box.
Hot Foil Stamping — Metallic foil transferred via heated brass die. Available in gold, silver, rose gold, copper, holographic, and custom PMS metallic. Creates a mirror-like reflective impression.
Blind Embossing / Debossing — Raised (embossed) or recessed (debossed) impressions with no ink or foil. Creates tactile, shadow-driven detail. Popular for monograms and subtle branding.
Interior Printing — Full-color printing on the inner tray and sleeve interior. Creates a dramatic contrast between a minimal exterior and a vibrant interior reveal.
Premium Finishing Options
Finishing transforms a printed box into a tactile experience:
- Matte Lamination — Anti-glare, velvety smooth. The most popular finish for luxury brands.
- Soft-Touch Lamination — Ultra-premium suede-like coating. Fingerprint-resistant, feels like velvet.
- Gloss Lamination — High-shine, color-amplifying. Makes vibrant artwork pop.
- Spot UV Coating — Selective high-gloss varnish over matte base. Creates dramatic texture contrast.
- Velvet Flocking — Interior-only application. Short synthetic fibers electrostatically bonded to create a plush velvet surface. Available in 30+ colors.
- Ribbon Pull — Satin ribbon tab on the inner tray for elegant one-handed opening.

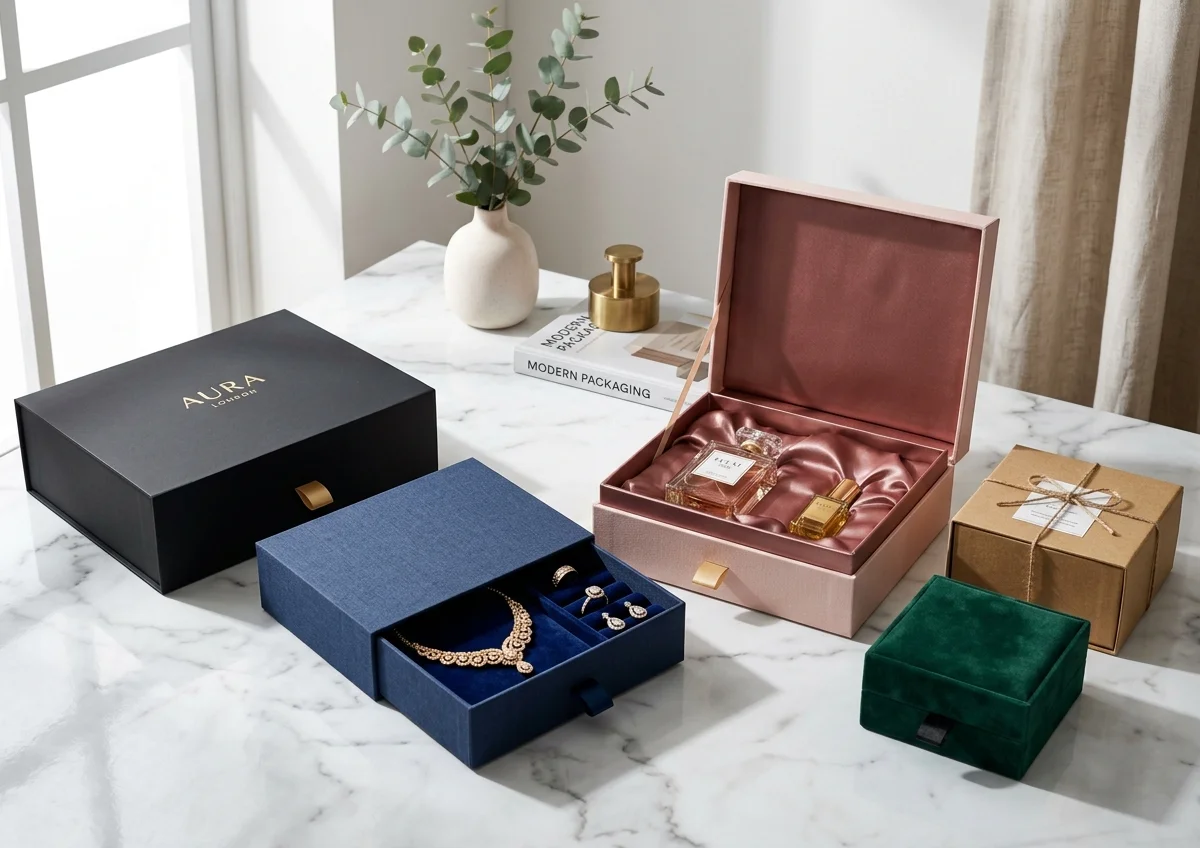

Drawer Box vs. Other Rigid Box Formats
How do drawer boxes compare to other rigid packaging options in the Cubit catalog?
| Feature | Drawer Box | Hinged Lid Rigid Box | Two-Piece Rigid Box |
|---|---|---|---|
| Opening mechanism | Sliding tray | Hinged flip | Lift-off lid |
| Reveal time | 3-5 seconds | 1-2 seconds | 1 second |
| Structural integrity | Excellent | Good (hinge stress) | Excellent |
| Interior visibility | Progressive | Immediate | Immediate |
| Best for | Theatrical reveal | Frequent opening | Display presentation |
| Price range (200 units) | $2.50-$9.50 | $3.00-$8.00 | $2.00-$7.00 |
The drawer box's unique advantage is the controlled reveal. The sliding mechanism lets you design the exact sequence in which the customer sees your product, brand messaging, and insert materials.
Interior Insert Options
The interior is where drawer boxes truly differentiate themselves:
Die-Cut EVA Foam — Precision-milled foam with custom cavities matching your product's exact shape. Available in densities from 25 to 45 kg/m³. Can be velvet-flocked in any color.
Satin Ribbon Cushion — A pillow-style satin pad that cradles products (especially perfume bottles and rounded items). Creates a nest-like presentation.
Molded Pulp Insert — Eco-friendly alternative to foam. Thermoformed from recycled fiber. Excellent for brands with sustainability commitments. See our molded pulp inserts for details.
Printed Paper Insert — Full-color printed card insert with die-cut windows. Cost-effective alternative to foam for lighter products.
Frequently Asked Questions
What is the minimum order quantity for custom drawer boxes?
Cubit's MOQ is 100 units for custom-sized drawer boxes with full-color printing and one finishing technique. Stock sizes in white or kraft are available in packs of 25 with no minimum. Volume pricing tiers start at 500 units (10-15% discount) and 1,000 units (20-25% discount).
How long does it take to produce custom drawer boxes?
Standard production time is 12-15 business days from artwork approval. Rush production (7-10 business days) is available for an additional 15-20% surcharge. Reorders of previously produced designs ship in 8-10 business days.
Can drawer boxes be used for food products?
Yes, with food-safe interior lining. Cubit uses FDA-compliant coated paper or food-grade tissue as the interior surface. The greyboard and exterior wrap are not in direct food contact. For products like chocolate or confections, we recommend a secondary food-safe wrapper inside the box.
What is the weight limit for drawer boxes?
Standard 2mm greyboard drawer boxes support products up to 2 lbs (900g). For heavier items (watches, spirits bottles, electronics), upgrade to 2.5mm board. The sliding mechanism itself has no weight limit — the constraint is the board's resistance to bowing under load.
Are drawer boxes eco-friendly?
The greyboard core is made from 100% recycled fiber and is fully recyclable. FSC-certified paper wraps are available. The main environmental consideration is the lamination — matte and gloss laminates are BOPP (polypropylene), which is technically recyclable but not accepted at all facilities. For maximum recyclability, choose unlaminated kraft wrap with soy-based inks.
How do I get a sample before placing a full order?
Cubit offers pre-production samples at cost ($25-$50 per sample depending on complexity). The sample is produced using the same materials, printing, and finishing as the production run. Sample turnaround is 5-7 business days. Sample cost is credited against your first production order of 200+ units.
