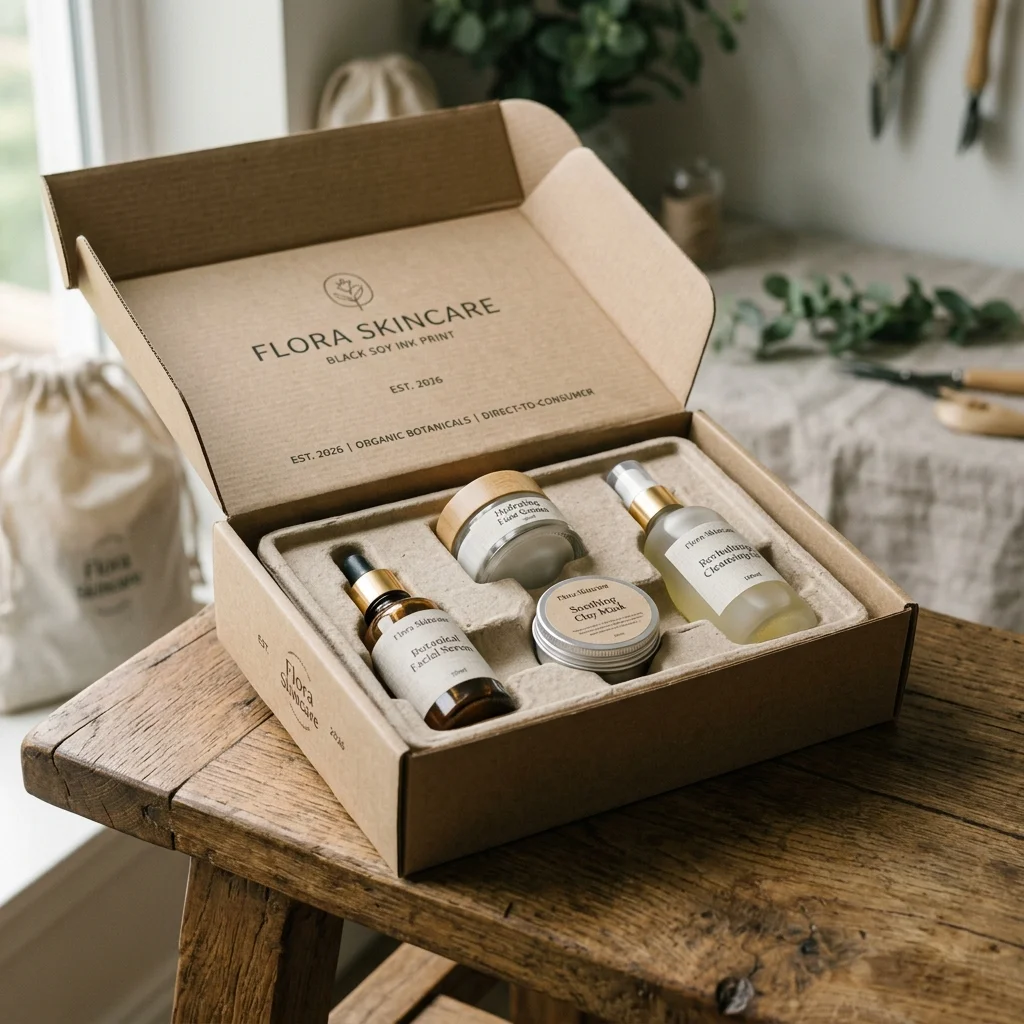

Eco-Protective Cushioning: Designing Molded Pulp Inserts

As global regulations restrict plastic foam packaging (like EPS and Styrofoam), B2B manufacturers require sustainable alternatives to protect fragile products during transit. Molded pulp inserts (molded fiber packaging) offer a compostable, shock-absorbent, and low-cost solution. This B2B guide analyzes pulp pulping chemistry, transfer-molding vs. thermoforming tool engineering, and draft angles.

1. Manufacturing Physics: Transfer-Molding vs. Thermoforming

Molded pulp is produced by vacuuming a slurry of recycled paper fibers onto a wire-mesh mold. The drying method dictates the final finish:

Transfer-Molded Pulp: The wet pulp is vacuum-formed on a mesh mold, then transferred to an oven to dry. This leaves one side smooth and the reverse side textured (resembling egg cartons). It is highly cost-effective for industrial parts and heavy shipping.
Thermoformed Pulp (Smooth Fiber): The wet pulp is pressed directly between heated metal molds, drying under high pressure. This yields a tray with two smooth surfaces, thin walls, and high-end aesthetic appeal, replacing plastic trays in cosmetics.

2. Tooling Design: Draft Angles and Corner Radius

Designing the CNC-machined aluminum molds requires specific tolerances:

Draft Angles: Because the wet paper fibers wrap tightly around the mold tooling, the cavities must feature a draft angle of 5 to 8 degrees. A vertical wall (0 degrees) will cause the paper to stick and tear when demolded.
Corner Radius: Sharp 90-degree corners cause fibers to thin out. A minimum corner radius of 3.0mm to 5.0mm is planned to ensure consistent wall thickness.

3. Sustainable Packaging Integration

Molded pulp is the ultimate zero-waste insert material:

Curbside Recyclable: Dissolves completely in pulping mills, allowing customers to toss the entire box and insert into standard paper recycling bins.
Backyard Compostable: Decomposes in garden soil within 90 days.
Reciprocal linking: Combine pulp inserts with matching luxury paper bags or shipping boxes inside our eco catalog.

Order Custom Molded Pulp Inserts Wholesale

Configure custom printed molded pulp inserts starting at 1,000 units. We provide CNC tool design and mockups. Visit our Inserts & Protection category page to view more options.
