The B2B Guide to Custom Window Folding Cartons: Die-Cut Apertures, Clear PET Patching, and Retail Shelf Appeal (2026)
The Power of Transparency: Engineering Retail Shelf Appeal with Window Folding Cartons
In modern brick-and-mortar retail, the consumer purchase decision occurs in fewer than four seconds. While vibrant graphics and gold foil typography capture attention, nothing inspires buyer confidence faster than direct visual validation of the physical product inside.

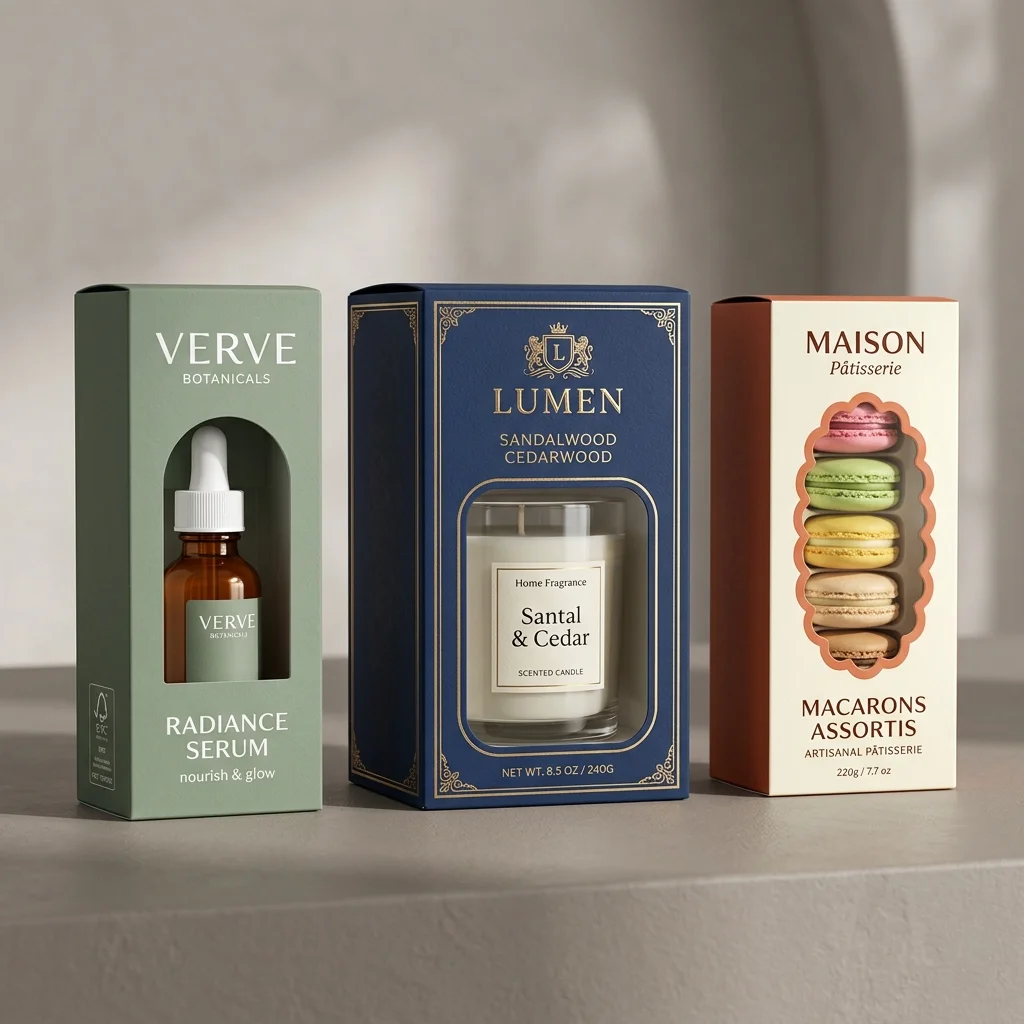

According to retail consumer behavior research, packaging featuring transparent viewing windows delivers an average 34% increase in retail point-of-sale conversion compared to identical fully enclosed solid cartons. When shoppers can verify the exact hue of a cosmetic serum, inspect the marbled swirls of an artisanal bath bar, or appreciate the hand-poured glass clarity of a scented candle, sensory uncertainty dissolves.
However, designing custom Window Folding Cartons involves delicate packaging engineering. Removing paperboard material to create an aperture fundamentally changes panel structural tension, compression resistance, and folding kinematics.
In this technical guide, packaging engineers and brand founders will learn how to calculate aperture margins, select the right optical film caliper, integrate internal stabilizing collars, and maximize shelf visibility.
Structural Anatomy of a Precision Window Folding Carton
A commercial window folding carton combines high-speed paperboard die-cutting with automated film patching and structural product stabilization:
+------------------------------------------+
| Top Tuck Closure (STE / RTE / Hang Tab) |
+------------------------------------------+
| Brand Typography & Regulatory Certs |
| +------------------------------+ | <- Minimum 10mm perimeter margin
| | High-Clarity Optical PET | | <- 150µm-250µm Anti-Static Film
| | Window Aperture (Die-Cut) | | <- Hot Foil or Spot UV Frame
| | | |
| | [ Centered Product Item ] | | <- Stabilized by Internal Collar
| +------------------------------+ |
| Product Name & Net Weight / Volume |
+------------------------------------------+
| Bottom Base (Auto-Lock or 1-2-3 Snap) |
+------------------------------------------+
Retail Packaging Format Comparison: Window Cartons vs Alternatives
Selecting the right balance between product transparency, manufacturing cost, and environmental sustainability requires comparing window cartons against competing formats:
| Packaging Format | Transparency Level | Unit Cost (10k units) | Structural Protection | Recyclability | Best Commercial Application |
|---|---|---|---|---|---|
| Window Folding Carton | High (Targeted Window) | $$ | High (18pt–24pt SBS) | High (Separate PET/Cardboard) | Cosmetics, Candles, Food, Tech |
| Solid Reverse Tuck Box | Zero (Enclosed) | $ | High (16pt–24pt SBS) | 100% Curbside Recyclable | Mass Retail Droppers, Supplements |
| Clear Rigid Plastic Box (PET) | 100% (All Panels) | $$$ | Moderate (Prone to Scratches) | Low (Plastic-Heavy) | Seasonal Confectionery, Stationery |
| Clear Thermoform Blister Pack | High (Clear Plastic Dome) | $$ | High (Cardboard Backer) | Poor (Heat-Sealed Plastic/Paper) | Hardware, Drugstore OTC Goods |
| Two-Piece Rigid Box | Zero (Solid Setup Box) | $$$$ | Exceptional (Crushproof) | High (Paperboard Core) | Luxury Perfume, Fine Jewelry Sets |
3 Critical Engineering Rules for Window Aperture Design
When engineering a custom window folding carton on CAD dielines, packaging structural engineers must follow three foundational rules to prevent carton deformation:
1. Maintain Minimum 10mm to 15mm Perimeter Margins
The most common structural mistake is positioning the window cut line too close to a score crease or side glue tab. When a carton is creased and folded at 90 degrees or 180 degrees on automated folding-gluing lines, tension across the crease exerts lateral pulling force on adjacent paperboard. If the aperture edge is closer than 10mm to 12mm to a score line, the panel will puck or curve outward. For heavy products, maintain a minimum 15mm margin.
2. Select the Optimal Window Film Substrate and Caliper
Not all clear films perform identically on retail shelves:
- Virgin Optical PET (150µm–250µm / 6–10 mil): The gold standard for retail. Features anti-static surface treatments that actively repel dust particles and lint under dry store HVAC systems. Resistant to fingertip scuffs and flexing.
- Cellulose Acetate (125µm–175µm): Semi-breathable film that permits moisture vapor transmission, making it the premier choice for fresh bakery goods, pastries, and artisanal chocolates that require anti-fog performance.
- NatureFlex™ Bio-Cellulose (100µm–150µm): Certified home and industrially compostable plant-based film manufactured from renewable wood pulp. Delivers 98% clarity with zero petroleum derivatives.
3. Engineer Internal Stabilizing Collars
Because consumers look through the window directly at your product, the item must remain perfectly centered. If a perfume bottle tilts 10 degrees to the left or slides down into the bottom fold during transit, the visual appeal is ruined.
At Cubit Packaging, we design integrated internal die-cut paperboard neck collars or curved shoulder cradles. These friction-fit collars fold down inside the top blank, gripping the bottle neck or container rim to guarantee millimeter-perfect alignment behind the viewing window at all times.
Premium Embellishments to Frame Your Window
Elevate your window aperture from a simple cutout into an opulent architectural centerpiece:
- Metallic Hot Foil Aperture Framing: A 1mm to 2mm gold, rose gold, or silver hot-stamped metallic border running along the perimeter of the die-cut cutout creates a gilded picture-frame effect that commands instant shelf prestige.
- High-Gloss Spot UV Edge Glaze: Applying high-build spot UV varnish to the printed graphics adjacent to the window creates a brilliant tactile transition between velvety matte paperboard and crystal-clear PET film.
- Double-Sided Duplex Interior Printing: Print contrasting floral patterns, geometric illustrations, or brand story copy on the inside walls of the carton. When shoppers gaze through the clear window past your product, they discover a captivating, multi-dimensional backdrop.
Ready to Showcase Your Products with Custom Window Folding Cartons?
Boost retail shelf velocity and captivate shoppers with custom Window Folding Cartons from Cubit Packaging. From bespoke geometric apertures and optical-grade anti-static PET film patching to custom internal stabilizing collars and luxury embellishments, our packaging specialists deliver certified retail solutions tailored to your brand.
Explore our full range of Folding Cartons & Retail Packaging or begin your custom project today.
👉 Configure Custom Window Folding Cartons & Request a Free Structural Sample Kit
