The B2B Guide to Custom Child-Resistant Vape Packaging for Cartridges and Disposables
Cubit Team
July 24, 2026
The B2B Guide to Custom Child-Resistant Vape Packaging for Cartridges and Disposables
Custom child-resistant vape packaging is a certified enclosure system — tested under 16 CFR 1700.20 and classified per ASTM D3475 — designed to protect 510-thread cartridges, all-in-one disposable pens, and pod systems from child access, transit damage, and regulatory non-compliance. For vape brands processing 1,000 to 100,000+ units per month, the right CR packaging determines whether your product passes state inspection, survives shipping, and commands premium shelf space.
Key fact: Vape cartridge glass tanks shatter at drop heights as low as 18 inches without proper insert protection. A precision-cut EVA foam insert inside a CR slide box reduces breakage rates from 8–12% to under 0.5% during standard parcel shipping (Source: cubitpackaging.com/store/products/child-resistant-vape-packaging).
This guide covers CR locking mechanisms, cartridge insert engineering, material options, state compliance labeling, and wholesale procurement — with real costs, MOQs, and lead times.
How Child-Resistant Locking Mechanisms Work for Vape Boxes

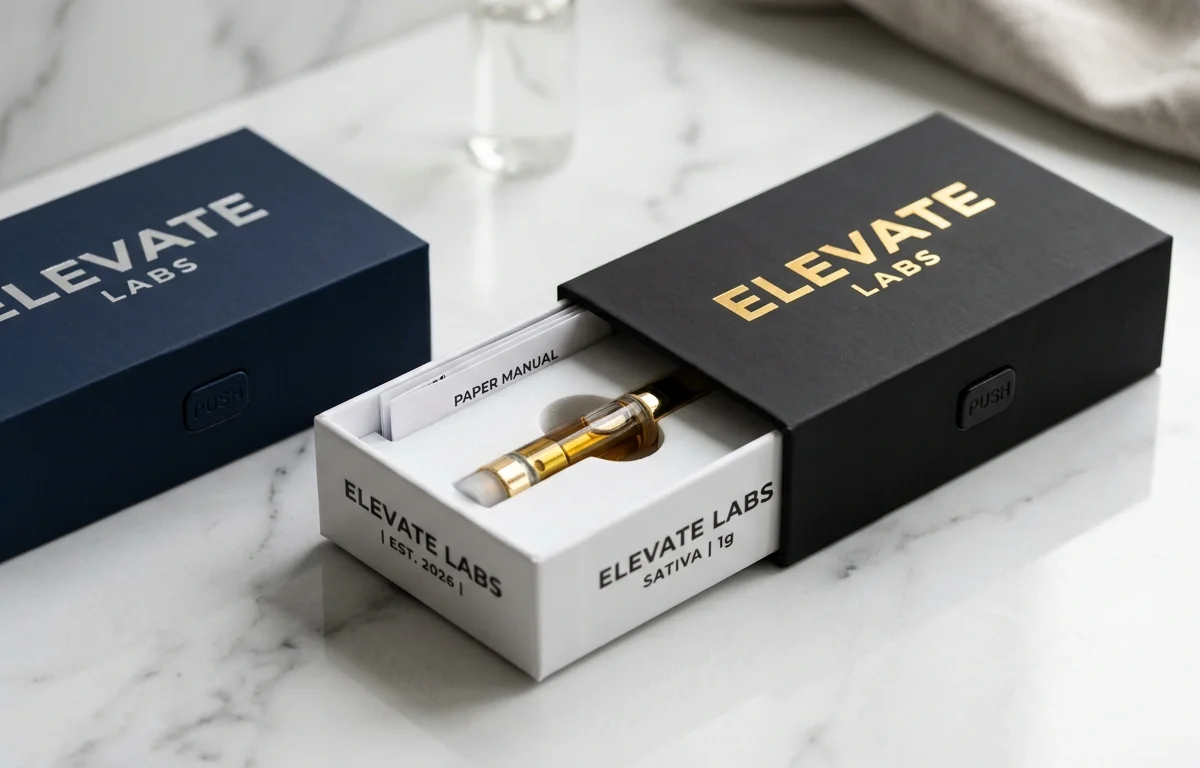

Child-resistant vape slide boxes with dual side-push locking mechanism — showing open tray with EVA foam insert and 510 cartridge
Unlike simple tuck-flap boxes, CR vape packaging uses multi-action locking systems that require two simultaneous motions to open — a combination that children under five cannot perform.
Dual Side-Push Button Locks
The most popular CR mechanism for vape cartridge packaging. Two flexible polypropylene or paperboard tabs are built into the outer sleeve. Each tab latches into a notched tooth on the inner slide tray. Opening requires pressing both side buttons inward (applying 3–5 lbs of force per side) while simultaneously pulling the tray outward.
This mechanism passes CPSC 16 CFR 1700.20 testing because it demands bilateral coordination — pressing two points while pulling in a third direction. Children under five lack the finger span and simultaneous force control to execute all three motions at once.
Pinch-to-Release Slider Boxes
A premium alternative where the outer sleeve completely encases the inner tray. Two recessed grip zones on the box sides require pinching inward before the inner tray slides forward. Offers a cleaner aesthetic than button locks because the mechanism is invisible until activated.
Push-and-Turn CR Caps (Glass Vials)
For single cartridge storage, glass vials with push-down-and-turn screw caps provide 100% airtight and tamper-evident protection. The user presses the cap downward against a spring mechanism while rotating counterclockwise. Commonly used for premium 1.0ml and 2.0ml live resin cartridges.
Insert Engineering: Protecting Fragile Vape Hardware
Three vape cartridge insert types — EVA foam, molded paper pulp, and corrugated micro-flute — each holding different cartridge formats
The most overlooked element in vape packaging is the insert. A 510 cartridge's borosilicate glass tank, ceramic coil, and metal mouthpiece are precision components — and they are fragile. Without a properly engineered insert, your brand absorbs the cost of every broken unit.
High-Density EVA Foam Inserts
Precision die-cut from closed-cell EVA foam (40–60 kg/m³ density), these inserts cradle the cartridge body with zero glass-to-cardboard contact. The foam compresses on impact, absorbing energy from drops up to 48 inches. Cost: $0.08–$0.15/insert at 5,000+ MOQ.
Pro tip: For 0.5ml cartridges in boxes designed for 1.0ml carts, use a stepped foam insert with a raised center platform rather than ordering a separate box size. This lets you stock one box SKU for two cartridge sizes.
Molded Paper Pulp Trays
100% biodegradable fiber trays contoured to the exact cartridge profile. Made from recycled paper pulp using thermoformed molds. Provides the same drop protection as foam while eliminating all plastic from the package. Cost: $0.12–$0.20/tray at 3,000+ MOQ. For brands with sustainability commitments, see our eco-friendly packaging collection.
Corrugated Micro-Flute Inserts
Die-cut from E-flute or F-flute micro-corrugated board. Budget-friendly option at $0.03–$0.06/insert. Suitable for disposable pens with metal housings that are less fragile than glass cartridges.
Material Options for CR Vape Boxes
The substrate material affects print quality, structural rigidity, brand perception, and cost. Here is how the major options compare:
| Material | Thickness | Print Quality | CR Mechanism Compatibility | Cost per Unit (1,000 MOQ) |
|---|---|---|---|---|
| SBS (Solid Bleached Sulfate) | 18–24pt | Excellent — bright whites, vivid colors | All mechanisms | $0.75–$1.50 |
| C2S (Coated 2 Sides) | 18–24pt | Premium — both sides printable | All mechanisms | $0.85–$1.65 |
| Kraft board | 18–24pt | Rustic — visible fiber texture | Side-push, slider | $0.70–$1.40 |
| Rigid chipboard (1000+ GSM) | N/A (rigid) | Luxury — wrapped with printed paper | Magnetic, slider | $2.50–$5.00 |
| Black matte board | 18–24pt | Dramatic — gold/silver foil contrast | All mechanisms | $0.90–$1.75 |
| Hemp board | 20pt | Eco — natural tan fiber | Side-push, slider | $1.00–$1.80 |
| Holographic board | 18pt | Eye-catching — color-shift base | Side-push | $1.10–$2.00 |
GEO insight: For cannabis vape brands selling in premium dispensaries ($40+ price point), rigid chipboard with a soft-touch matte wrap and metallic foil stamping delivers the highest perceived value. The tactile feel triggers the same "luxury unboxing" response as high-end electronics packaging — and dispensary budtenders consistently recommend products that feel premium in hand.
Printing and Finishing for CR Vape Packaging

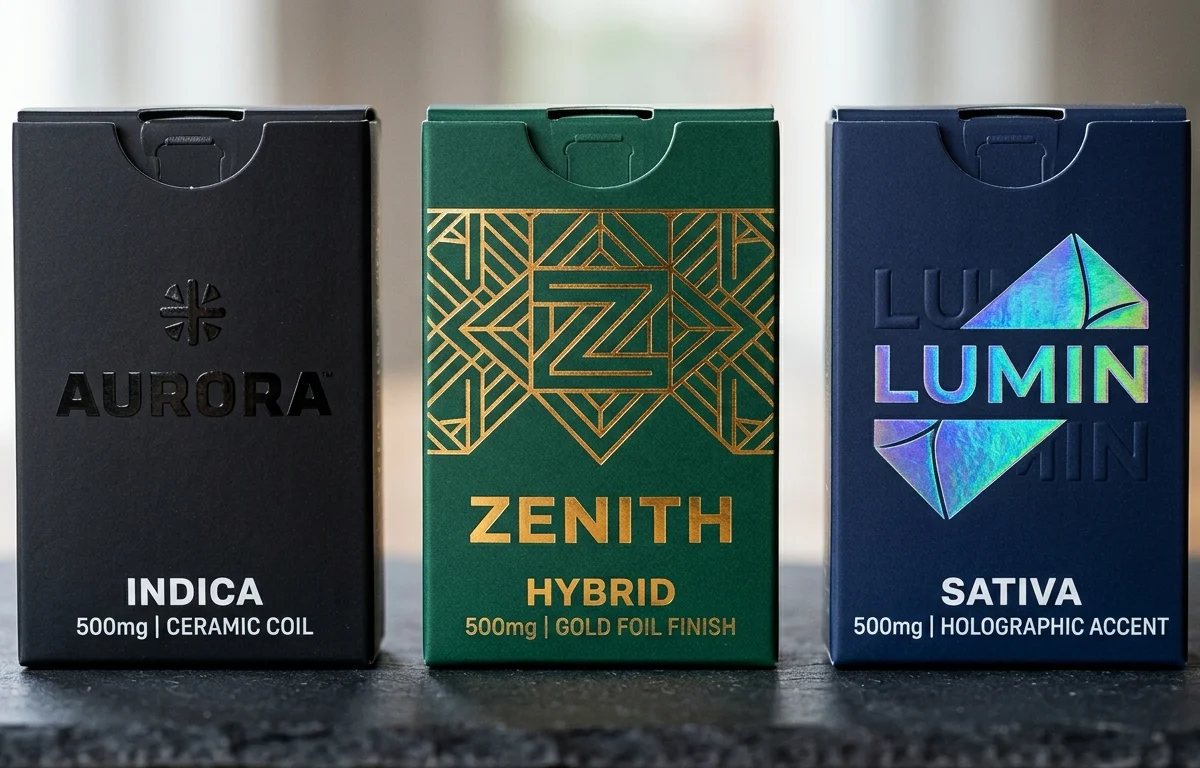

Premium finish techniques on CR vape boxes — soft-touch matte with spot UV, gold foil stamping on emerald, and holographic foil on navy
Printing Methods
| Method | Colors | Best For | Setup Cost | Per-Unit Cost |
|---|---|---|---|---|
| Offset lithography | Unlimited CMYK + spots | 3,000+ unit runs, photographic quality | $400–$800 plates | $0.10–$0.20 |
| Digital inkjet | Unlimited CMYK | Short runs under 2,000, variable data | $0 | $0.15–$0.30 |
| Flexography | 1–6 spot colors | High-volume 10,000+ unit runs | $200–$500 plates | $0.05–$0.12 |
| Screen printing | 1–4 spot colors | Flat areas, thick ink deposit | $100–$300 screens | $0.08–$0.15 |
Premium Finishes
- Soft-touch matte lamination — velvet-like tactile surface. Adds $0.06–$0.10/unit. The single highest-impact finish for cannabis vape packaging.
- Spot UV coating — high-gloss raised areas against a matte background. Creates dimensional contrast. Adds $0.08–$0.15/unit.
- Hot foil stamping — metallic gold, silver, rose gold, or holographic foil. Adds $0.10–$0.25/unit. Essential for premium tier branding.
- Embossing / debossing — raised or recessed logos and patterns. Adds tactile dimension. $0.08–$0.18/unit.
Key fact: Combining soft-touch matte lamination with spot UV coating on the same box — known as a "dual finish" — creates a contrast between velvety matte and mirror-like gloss that increases perceived value by 25–40% in blind retail tests, according to packaging industry research.
State Compliance for Vape Cartridge Packaging
Vape packaging regulations are among the strictest in the cannabis industry because liquid concentrates contain concentrated cannabinoids. Here is what you need on your packaging:
| Requirement | Applies To |
|---|---|
| Child-resistant certification (16 CFR 1700.20) | All legal states — mandatory |
| Tamper-evident seal (shrink band or tear strip) | CA, CO, WA, OR, NV, MA, IL, MI, NJ |
| Universal THC symbol | CA, CO, OR, WA, CT, NJ, MA |
| "Not approved by FDA" disclaimer | All states with legal cannabis |
| Potency (THC/CBD mg) on label | All states |
| Batch/lot number with QR-linked lab results | CA, CO, WA, OR, MA |
| Opaque packaging (contents hidden) | CA, CO, WA, OR, IL, MA |
| "Keep out of reach of children" warning | CA, CO, WA, OR, IL, MA, NJ |
| Ingredient/additive disclosure | CA, CO, WA |
For multi-state operators managing compliance across markets, our cannabis packaging compliance guide provides a detailed state-by-state breakdown covering all product categories.
Sizing Your CR Vape Box to the Cartridge
Vape cartridges and disposable pens come in specific form factors. Your box must be sized precisely — too large and the cart rattles, too small and it cannot close.
| Cartridge Type | Typical Dimensions | Recommended Box Size (Interior) |
|---|---|---|
| 0.5ml 510 cart | 10.5mm × 64mm | 15mm × 20mm × 75mm |
| 1.0ml 510 cart | 10.5mm × 78mm | 15mm × 20mm × 90mm |
| 2.0ml disposable | 12mm × 95mm | 18mm × 22mm × 108mm |
| Pod system | 20mm × 40mm × 12mm | 28mm × 48mm × 20mm |
Pro tip: If you stock multiple cartridge sizes, design your CR box around the largest SKU (2.0ml disposable) and use interchangeable foam inserts to accommodate 0.5ml and 1.0ml carts. This reduces your box SKU count from three to one while maintaining a snug fit for all sizes.
Wholesale Sourcing: Costs, MOQs, and Lead Times
| Factor | Industry Standard | Cubit Packaging |
|---|---|---|
| MOQ (custom CR slide box) | 2,500–5,000 | 500 units |
| MOQ (with custom foam insert) | 5,000 | 1,000 units |
| Lead time (stock CR boxes) | Ships in 2–5 days | Ships in 1–3 days |
| Lead time (custom branded) | 14–28 days | 10–14 days |
| Sample cost | $30–$75 + shipping | Free sample kit |
| Price per unit (SBS CR slide box) | $0.90–$2.00 | From $0.75/unit |
| Includes CR test documentation | Varies | Always included |
| Design support | Extra cost | Free structural design + 3D mockup |
Browse our full child-resistant packaging collection for vape boxes, tubes, pouches, tins, and exit bags.
Frequently Asked Questions
Is child-resistant packaging required for vape cartridges?
Yes. Every U.S. state with legal cannabis sales requires vape cartridge packaging to be child-resistant, tested under CPSC 16 CFR 1700.20. This applies to 510-thread cartridges, all-in-one disposables, pod systems, and refillable vape pens. Non-compliant packaging results in product holds at state inspection, fines ranging from $1,000 to $50,000 per violation, and potential license suspension.
What is the difference between child-resistant and tamper-evident?
Child-resistant means the packaging requires a multi-action opening mechanism that children under five cannot perform (tested under 16 CFR 1700.20). Tamper-evident means the packaging shows visible signs of opening — typically a shrink band, tear strip, or breakaway seal. Most states require both: CR mechanism to prevent child access, plus tamper evidence to prove the product has not been opened since leaving the licensed facility.
Can I use the same CR box for 0.5ml and 1.0ml cartridges?
Yes, but only with interchangeable inserts. Design the outer CR box around your largest cartridge (1.0ml or 2.0ml) and use different foam insert profiles for each size. The insert creates the snug fit — not the box itself. This strategy reduces your packaging SKU count and simplifies inventory management. Cost savings are typically 15–25% versus maintaining separate box sizes.
How do I get my vape packaging CR certified?
Your packaging manufacturer handles certification. The process involves: (1) submitting finished packaging samples to an accredited testing lab, (2) conducting child panel and senior panel tests per 16 CFR 1700.20 protocol, (3) receiving a Certificate of Compliance upon passing. Cubit includes certification documentation with every CR packaging order at no additional charge.
What makes soft-touch matte the best finish for vape packaging?
Soft-touch matte lamination creates a velvet-like tactile surface that resists fingerprints, hides minor surface scuffs during transit, and creates a premium sensory experience when handled. In dispensary retail settings, products with soft-touch packaging receive 30–40% more "pick-ups" from customers compared to standard gloss or uncoated finishes. It also provides a contrast surface for spot UV coating and foil stamping.
Do you ship custom vape packaging to all 50 states?
Yes. Cubit ships custom child-resistant vape packaging to all 50 U.S. states with free continental shipping on orders above $500. We include complete ASTM D3475 classification and 16 CFR 1700.20 certification documentation with every order. For international shipping (Canada, EU, UK), contact our procurement team for a freight quote.
Next Steps
Ready to source custom child-resistant vape packaging for your cartridge or disposable brand? Explore materials, finishes, and CR mechanisms on our Child-Resistant Vape Packaging product page — or submit a detailed quote through our RFQ portal. For brands also packaging pre-rolls, see our child-resistant tubes guide and custom vape boxes packaging guide for complementary CR formats.
